Tooth count decides the finish
60–80 T for mild steel and angle iron, 80–100 T for aluminium sheet and extrusion, 10–24 TPI bi-metal for pipe and conduit. Coarser teeth cut faster and rougher; finer teeth leave a cleaner edge.
03
1,500–2,500 rpm
Mild steel
1,000–1,500 rpm
Stainless steel
2,500–3,500 rpm
Aluminium
up to 50× cooler
vs abrasive disc
01 — At a glance
The three things that matter most
Carbide-tipped blades cut metal; abrasive discs grind it away. A TCT blade removes a chip, runs far cooler and finishes almost burr-free. The trick is matching tooth count and rpm to the material — and treating stainless completely differently from mild steel.
Stainless is not mild steel
Stainless work-hardens the moment a tooth rubs instead of cutting. Run it slower (1,000–1,500 rpm) with coolant and keep a positive feed. Rushing a stainless cut hardens the surface, and hardened steel eats blades.
Aluminium needs its own blade
Aluminium is soft and gummy. Use a high-tooth-count non-ferrous blade, clear chips often and lubricate to stop a built-up edge. Never cut aluminium with an abrasive disc — it clogs the wheel and can burst it.
02 — Tool matching
Match the tool to the material
Pick the row for your material. If two rows look similar, start with the slower option — it is almost always the safer and cheaper mistake.
| Material | Blade | Speed | Technique |
|---|---|---|---|
| Mild / low-carbon steel | TCT, 60–80 T | 1,500–2,500 rpm | Steady feed, straight cuts, light lubricant |
| Stainless steel 304 / 316 | Carbide or cermet, fine pitch | 1,000–1,500 rpm | Slow + coolant, never force |
| Aluminium 6061 / 6063 | Non-ferrous TCT, 80–100 T | 2,500–3,500 rpm | Clear chips often, lubricate |
| Copper / brass | Fine-tooth | 2,000–3,000 rpm | Light pressure, support the work |
| Box tube, angle, rebar (14″ chop saw) | TCT, 66–120 T | ≈1,800 rpm | Clamp both sides of the cut |
| Pipe, conduit, demolition | Bi-metal, 10–24 TPI | Stroke speed | Support the off-cut |
| Sheet metal ≤3 mm | Step drill | 300–600 rpm | One bit, many hole sizes |
| Structural steel, plate | Annular cutter | 400–800 rpm | Magnetic drill + coolant |
03 — Step by step
Getting a clean cut in metal
In order. Skipping a step usually costs more time than it saves.
01
Clamp both sides of the cut
Metal moves as it releases stress. Clamp the workpiece either side of the kerf so it cannot pinch the blade — pinching is what produces kickback.
02
Choose teeth for the material
Coarse (40–60 T) for thick solid stock, 60–80 T for general steel, 80–100 T for aluminium and thin material. Too few teeth snag; too many clog with soft materials.
03
Let the blade cut, do not lean on it
A carbide blade cuts by removing chips, not by grinding. If you have to push, something is wrong — wrong blade, wrong speed, or a dull tooth. Excessive feed is the number one cause of broken carbide tips.
04
Keep the chip clear
Recutting chips multiplies heat and destroys edges. On aluminium especially, lift out of the cut periodically and clear the kerf.
05
Cool — and never quench hot stainless
Use soluble oil, cutting fluid, or a mister. For stainless, keep the coolant on continuously from the first tooth to the last; intermittent cooling plus work-hardening is how a good blade dies young.
06
Deburr before you assemble
A flap wheel or sanding disc takes the burr off in seconds. Deburring is part of the cut, not an optional extra — it protects the finish, the assembly and the person handling the part.
04 — Feeds & speeds
Numbers to start from
Use these as a starting point and adjust to what the cut is telling you. Start slow and work up.
| Workpiece | Cutting speed | Ø3 mm | Ø6 mm | Ø10 mm | Coolant |
|---|---|---|---|---|---|
| Mild / low-carbon steel (S235, 1045) | 25–30 m/min | 2,653–3,183 | 1,326–1,592 | 796–955 | Soluble oil or cutting fluid |
| Alloy steel (4140, 42CrMo4) | 15–20 m/min | 1,592–2,122 | 796–1,061 | 477–637 | Flood coolant |
| Stainless steel (304, 316) | 10–15 m/min | 1,061–1,592 | 531–796 | 318–477 | Heavy coolant, slow feed |
| Cast iron | 20–25 m/min | 2,122–2,653 | 1,061–1,326 | 637–796 | Dry or mist |
| Aluminium (6061, 6063) | 60–100 m/min | 6,366–10,610 | 3,183–5,305 | 1,910–3,183 | Kerosene or mist |
| Brass / bronze | 60–90 m/min | 6,366–9,549 | 3,183–4,775 | 1,910–2,865 | Light oil |
| Copper | 45–60 m/min | 4,775–6,366 | 2,387–3,183 | 1,432–1,910 | Light oil |
For cobalt (M35) and TiAlN-coated bits you can add 15–25 % to these speeds. Halve them for a hand drill you cannot clamp — hand-fed drilling has far less rigidity than a drill press.
05 — Troubleshooting
If it goes wrong
The symptom is rarely the problem. Read the root-cause column before you change anything.
| Symptom | Root cause | Fix |
|---|---|---|
| Stainless polishes instead of cutting; teeth dull fast | Work-hardening from too-high rpm or too light a feed | Drop to 1,000–1,500 rpm, increase feed so each tooth bites, flood with coolant |
| Aluminium gums up the teeth (built-up edge) | Chips not cleared, or no lubricant | Use an 80–100 T non-ferrous blade, kerosene or cutting oil, lift to clear chips |
| Blue or brown discolouration, burning smell | Cutting too fast without coolant | Slow down, add fluid, check the teeth are still sharp |
| Blade climbs out of the cut / kickback | Work not clamped, or blade entering at an angle | Clamp both sides, let the blade reach full rpm before contact, enter square |
| Drill wanders on entry | No centre punch, started too fast | Centre punch or pilot hole, start at 300–600 rpm |
| Heavy burr on the cut edge | Tooth count too low, feed too high | Finer pitch, lower feed, deburr with a flap wheel |
| Triangular or out-of-round hole from a step drill | Too much speed, too much pressure | 300–600 rpm in sheet metal, light steady pressure, let the step do the work |
06 — Recommended tools
Cutting and drilling tools for metal
Every item below is made by EXTRACUT and links straight to the product page.

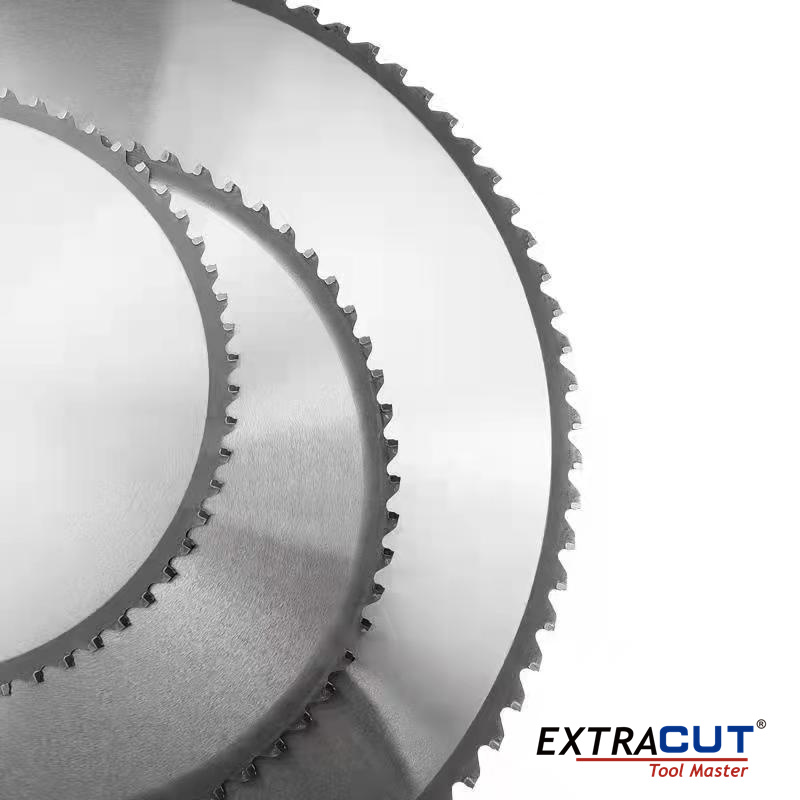

T.C.T. Circular Saw Blade for Steel(Cermet Saw Blade)
Cermet-tipped blade for steel: cuts up to 50× cooler than an abrasive disc.
View product

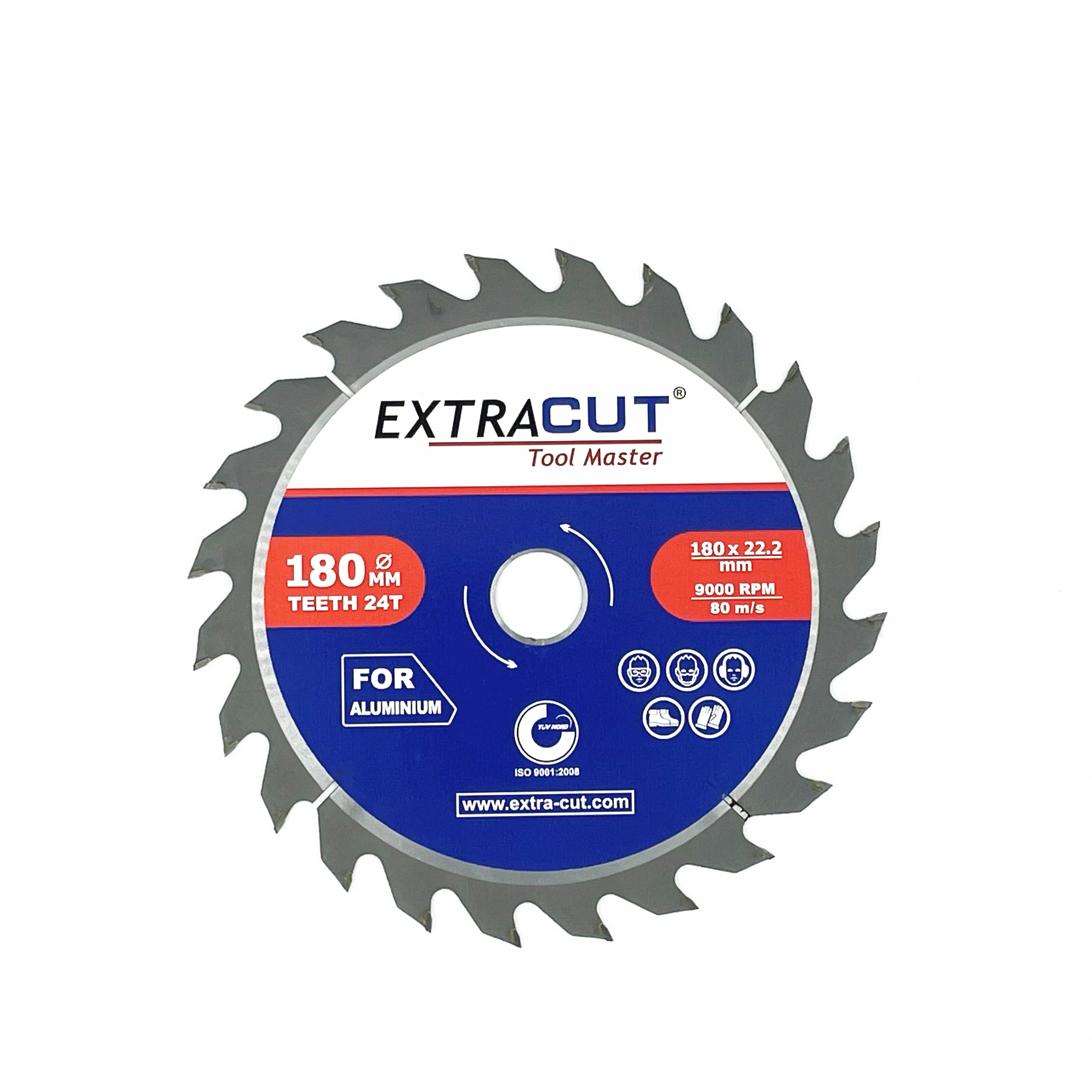

T.C.T. Circular Saw Blades for Aluminium
High-tooth-count non-ferrous blade for aluminium sheet and extrusion.
View product
Cutting Discs - T41
T41 thin cutting disc for angle grinders — fast, clean, minimal material loss.
View product
Grinding Discs -T27
T27 grinding disc for weld dressing and surface preparation.
View product
HSS Cobalt Twist Drill Bits
Cobalt (M35) twist drills for stainless and work-hardening alloys.
View product

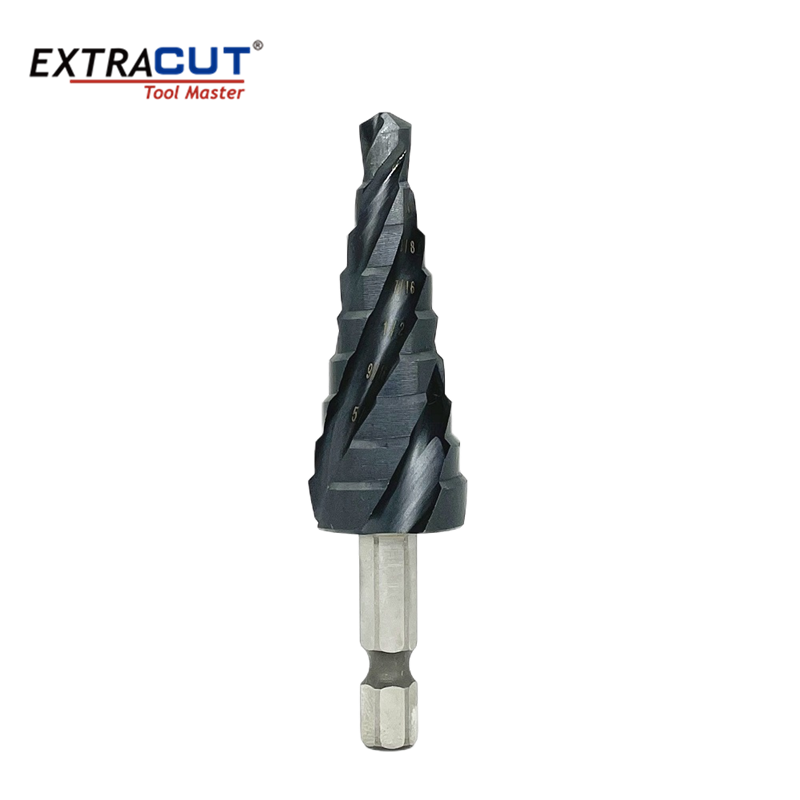

Step Drill Bit TiALN Coated Hex Shank Four Flutes
TiAlN-coated step drill: one bit, many hole sizes in sheet metal.
View product
HSS Annular Cutter
HSS annular cutter for structural steel on a magnetic drill.
View product
Flap Wheels - Zirconia
Zirconia flap wheel for deburring and blending in one pass.
View productCermet and TCT blades, cobalt drills and annular cutters — for fabricators who measure cost per cut, not per blade.
07 — Safety
Before you switch anything on
Short list, long consequences. These apply to every job on this page.
Sparks start fires. Clear combustible dust, solvents and packaging before cutting. Metal dust plus sparks is the classic workshop fire.
Eyes and face, not just eyes. Cut-off discs shed fragments; a full face shield over safety glasses is the standard for abrasive cutting.
Stainless and chrome-nickel dust is a carcinogen. Cut wet or use local exhaust ventilation; do not breathe the fines.
Match the disc to the tool. Never run a disc rated below the grinder's no-load rpm, and never re-fit a worn disc to a machine it was not used on.
No abrasive discs on aluminium. Aluminium fills the wheel's pores, overheats it and can burst it. Use a TCT non-ferrous blade.
Unplug before changing a blade or disc. Every time, no exceptions.
08 — FAQ
Frequently asked questions
The questions our technical team answers most often.
Can I cut aluminium with an abrasive disc?
No. Aluminium clogs the pores of the wheel, builds heat and can cause the disc to burst. Use a high-tooth-count non-ferrous TCT blade, keep the chips clear and lubricate.
Why does my stainless cut take so long?
Work-hardening. If rpm is too high or the feed too light, the tooth rubs and hardens the surface instead of cutting under it. Slow to 1,000–1,500 rpm, increase feed, and keep coolant flowing continuously.
TCT blade or abrasive disc in a chop saw?
For repeat work, TCT. It cuts cooler, holds tolerance, produces chips rather than dust, and finishes close to burr-free. Abrasive discs are cheap per unit but slow and dirty, and the cost per cut is usually higher.
What rpm for a 14-inch metal-cutting blade?
Around 1,800 rpm. A 185 mm metal blade is typically rated to 3,200 rpm max, a 210 mm blade to 2,800 rpm. Always stay inside the max rpm etched on the blade.
How do I stop a step drill from making a triangular hole?
Slow down. Run 300–600 rpm in sheet metal with light, steady pressure and let each step finish before moving to the next. High speed or heavy pressure makes the bit chatter and triangulate the hole.
Still not sure which tool fits the job?
Send us the material, the machine and the finish you need. Our engineers will specify the blade, bond or bit — and quote it with a sample if you want to test before you commit.
