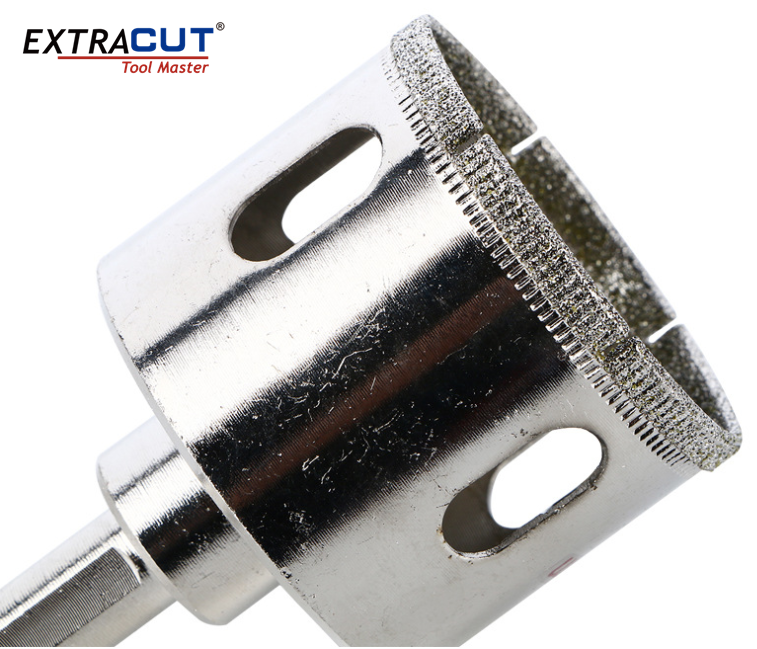

EXTRACUT Electro-Plated Diamond Core Bit (Hole Saw) a thin-wall diamond cutting tool engineered for fast, clean hole cutting in tile, ceramic, glass, and marble. The electro-plated diamond rim cuts with minimal chipping and requires no water on many materials, making it ideal for plumbing, electrical, and tiling installations.
Key Features
- Electro-Plated Diamond Rim — Single-layer electro-plated diamond provides sharp, fast cutting from the first hole.
- Thin-Wall Design — Minimal kerf reduces material waste and cutting effort with clean edges.
- Low Chipping — Engineered for chip-free cuts in brittle materials like tile and glass.
- Dry or Wet Cutting — Cuts dry on tile and ceramic; use water on glass and stone for best life.
- Standard Arbor — Fits common drill chucks and angle grinders with the included mandrel.
- Multiple Diameters — Available from Ø6mm to Ø80mm for common fixture and pipe holes.
Applications
Plumbing and pipe penetrations through tile and ceramic, electrical box cutouts, glass and mirror drilling, and tiling installations where clean, chip-free holes are required.

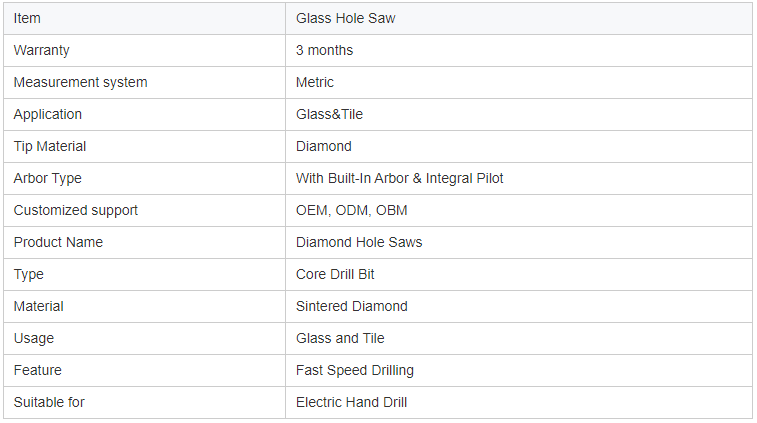

Specifications
| Specification |
Value |
| Type |
Electro-Plated Diamond Core Bit (Hole Saw) |
| Bond |
Electro-Plated Diamond (single layer) |
| Diameter Range |
Ø6mm – Ø80mm |
| Wall |
Thin-Wall (low kerf) |
| Cutting |
Dry (tile/ceramic) / Wet (glass/stone) |
| Arbor |
Standard Mandrel (round shank) |
| Materials |
Tile, Ceramic, Glass, Marble, Porcelain |
| Speed |
Low RPM, steady feed |
| Best For |
Plumbing, Electrical, Tiling Holes |
| Cooling |
Water advised for glass/stone |
