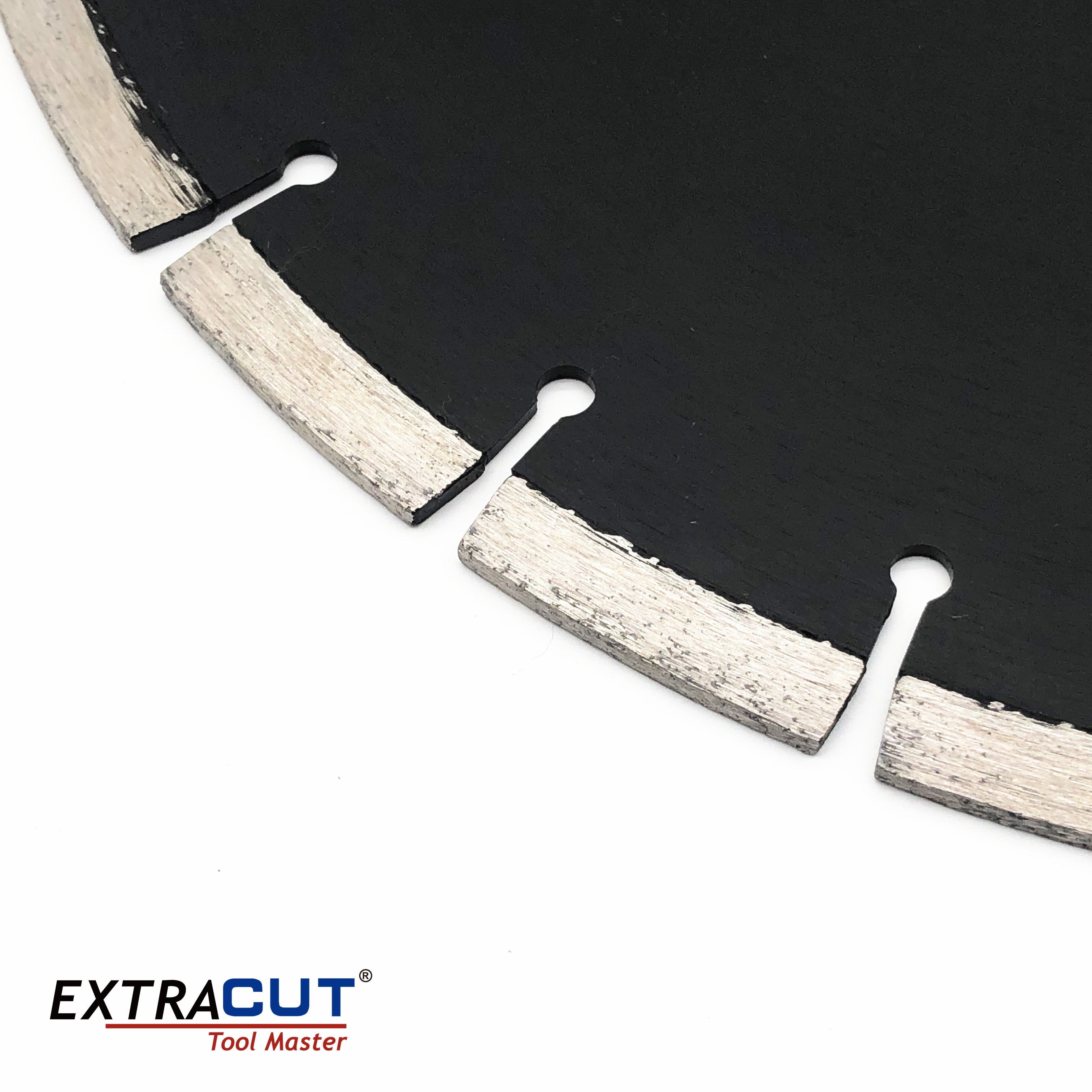

EXTRACUT Laser Diamond Blades are engineered for heavy-duty cutting of asphalt, concrete, and reinforced concrete. Featuring laser-welded diamond segments with super high quality cutting teeth, these blades deliver fast, straight cutting performance and extended service life on road saws, floor saws, and walk-behind concrete saws.
Key Features
- Laser Welded Segments — Diamond segments are fused to a precision steel core using high-energy laser welding, creating an exceptionally strong bond that resists segment loss even under the shock loads of cutting steel-reinforced concrete.
- Super High Quality Cutting Teeth — Premium diamond teeth are formulated and aligned for aggressive cutting through asphalt and dense concrete while maintaining a straight, wobble-free kerf.
- Reinforced Concrete Capability — The blade is designed to cut through concrete containing steel rebar, delivering reliable performance on demanding road and bridge demolition applications.
- Wet Cutting Optimized — Continuous water cooling keeps the blade cool, suppresses dust, and prolongs diamond life during extended cutting operations.
Applications
Ideal for asphalt road and pavement cutting, concrete floor and slab sawing, reinforced concrete with steel rebar, expansion joint cutting, and bridge deck and highway repair work.
Specifications
| Parameter | Specification |
|---|
| Product Name | Laser Diamond Blade |
| Diameter Range | 115 mm – 600 mm (4-1/2" – 24") |
| Arbor Hole | 20 mm / 22.23 mm / 25.4 mm |
| Segment Type | Laser welded (teeth) |
| Blade Thickness | 2.0 mm – 3.4 mm |
| Segment Height | 7 mm – 17 mm |
| Diamond Grit | High-quality synthetic diamond |
| Body Material | High-strength steel core |
| Max RPM | 2,500 – 13,300 (refer to diameter) |
| Use Type | Wet (dry optional) |
| Target Materials | Asphalt, concrete, reinforced concrete |
